Direct vs Middleware vs Embedded Integration for PLM And Dynamics 365 F&SCM

Table of contents
When people think of Product Lifecycle Management (PLM) and ERP integration, they often imagine two puzzle pieces snapping into place. But on the contrary, it’s more like bringing together two entirely different worlds, each with its own language and logic.
PLM and ERP integration architecture is complex and tangled in layers of data and processes. Navigating this complexity successfully depends on choosing the right integration strategy from the very start.
Research shows that 89% of companies struggle with data and system integration, and one major reason for failure is unrecognized complexity.
PLM and Microsoft Dynamics 365 Finance and Supply Chain Management (F&SCM) can be integrated using three different types of architecture:
- Direct integration: Typically refers to a point-to-point or application programming interface (API) connection between two systems without middleware.
- Middleware integration: An intermediary software layer that sits between PLM and ERP to handle transformations, routing, and orchestration.
- Embedded integration: A solution built within Dynamics 365 F&SCM, using its native architecture, user interface, business logic, and security framework.
Over the past five decades, numerous empirical studies and failure reports on integration projects have led to the development of key guiding principles. And one of them says:
Integration is only as good as the architecture that captures the business requirements.
Thus, finalizing the architecture is the key ingredient of integration planning. This blog dives deep into each type and provides a decision framework to help you understand which approach best suits you.
Want to connect PLM and D365? Discover the factors you need to consider while choosing. |

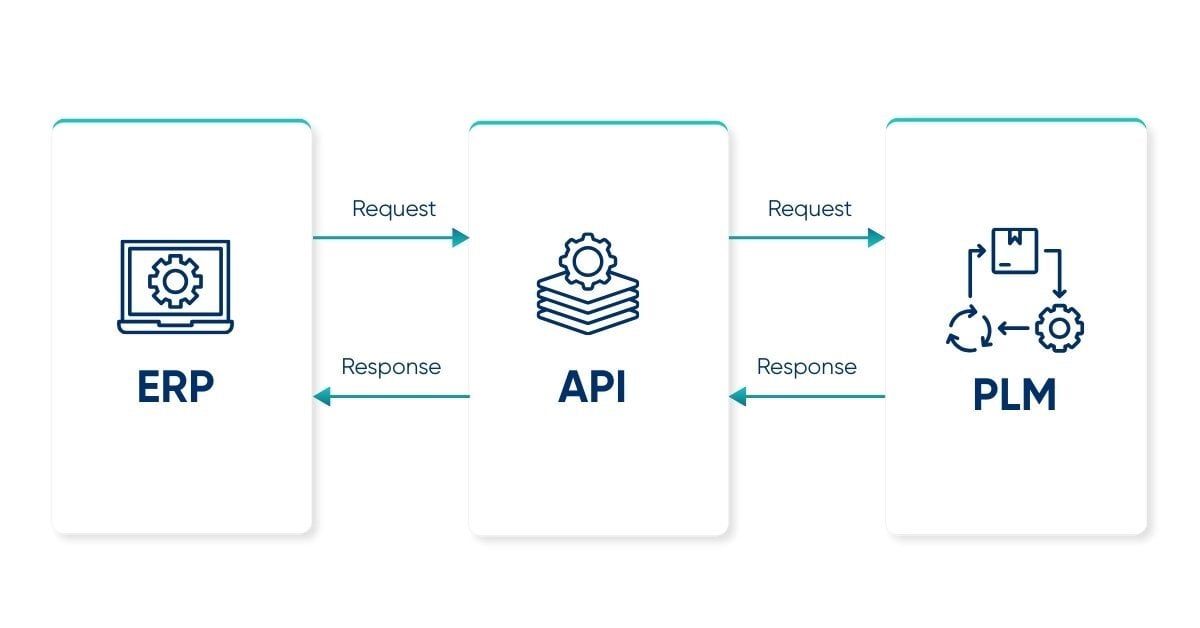

API Integrations
Before we dive into the three types of integrations, let’s look at API integration/ connections:
Definition: API integration is the process of linking two or more software applications via their Application Programming Interfaces (APIs) so they can exchange data and perform actions automatically.
Example scenario of an API integration:
When new product design is finalized in the PLM system, a detailed BOM is generated. This BOM needs to be sent to ERP for planning, procurement, and inventory management. To enable this data transfer, the PLM system exposes a RESTful API endpoint, to retrieve a finalized BOM. The ERP system would then make an API call to this endpoint to fetch the BOM data.
API integration is a common architectural component across any integration – direct, middleware, or embedded.
Direct Integration for PLM and Dynamics 365 F&SCM
Direct integration between PLM Dynamics 365 F&SCM represents the most straightforward data exchange and synchronization approach. This architecture eliminates the need for intermediate platforms, connecting the two systems through point-to-point integration.

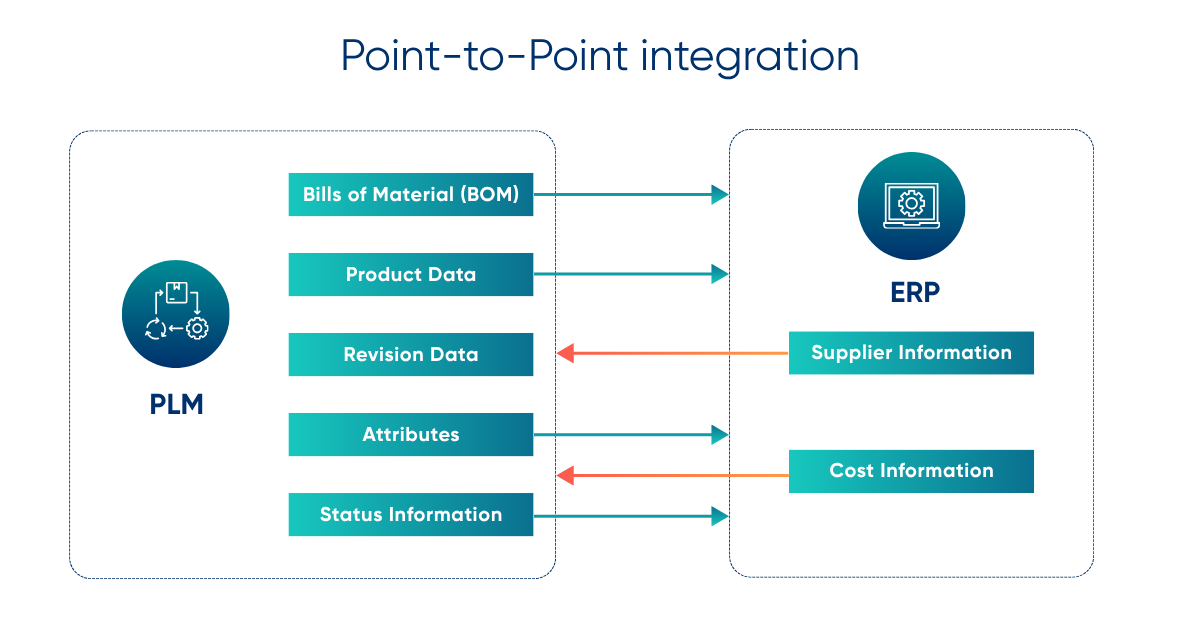

Architecture and Technical Overview of Point-to-point Integration
Point-to-point integration (also known as peer-to-peer or P2P integration) establishes dedicated, custom-built connectors between the PLM and Dynamics 365 to exchange data such as BOM, item master data, or change orders. When the data is received on the receiving system, it is automatically converted into the format it understands. The requested data is placed in a queue and processed sequentially to avoid data overload.
Real-time synchronization in point-to-point integration is often limited, as data is typically transferred in scheduled queues or upon manual triggers.
Benefits and Challenges of Point-to-point Integration:
Benefits:
- Simple Architecture: Most suitable for single system integrations.
- Low Maintenance: Without additional modules, both learning and maintenance overhead are reduced.
Challenges:
- Limited Scalability: As the number of systems grows, point-to-point integration becomes more complex, resulting in a “spaghetti” architecture, making it difficult to scale.
- High Maintenance: Any changes to the system translate into changes for each unique connection, resulting in costly maintenance and a high risk of downtime.
Implementation Considerations for Point-to-Point Integration:
Point-to-Point integrations are effective but there are a few considerations that will help effectiveness and efficiency:
- Documentation: Maintain details for every connection, such as data mappings, protocols, and potential dependencies. This will help with troubleshooting and future upgrades.
- Error Handling: Addressing errors like failed transmissions, data inconsistencies, or unexpected downtime is a great value add to P2P integrations but consequently costs also rise.
- Audit: Regularly monitor integration performance and audit to ensure data security and integrity, and gain insights for improving the process.
- Regular Update and Testing: Plan regular updates to ensure continued compatibility. Proactive testing can help prevent integration disruption.
Middleware Integration for PLM and Dynamics 365 F&SCM
Middleware integration is third-party software that enables data exchange between two systems. It provides services and capabilities, such as data transformation, routing, message queuing, etc., to facilitate seamless integration between them.

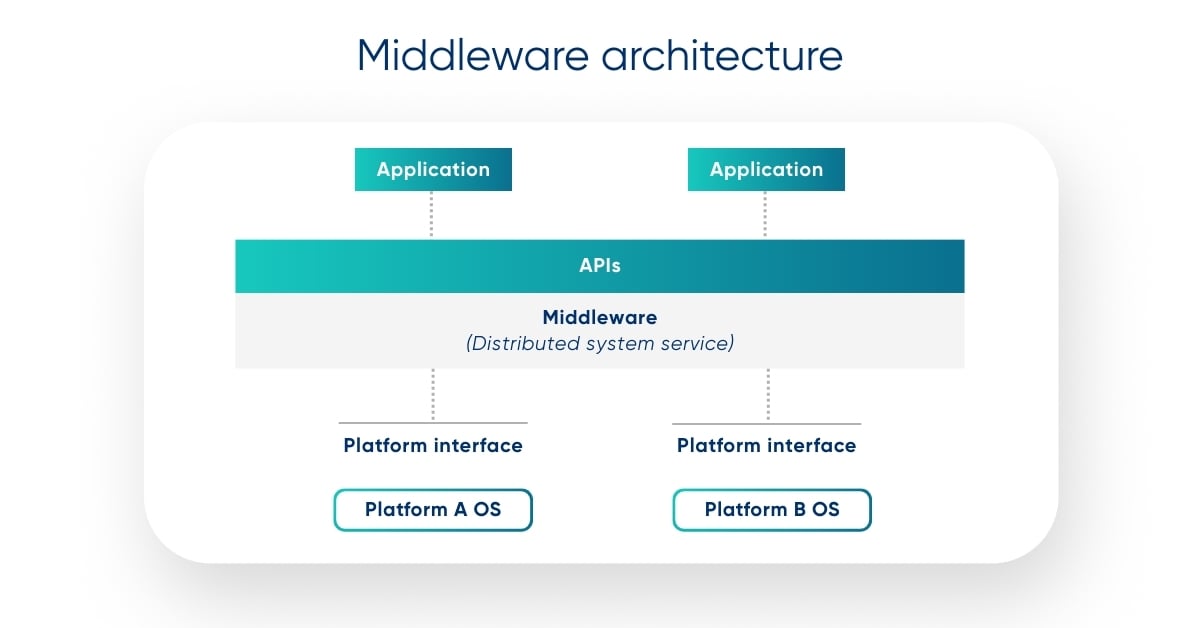

Architecture:
In middleware integration, PLM and D365 systems publish and consume data through standardized interfaces (e.g., APIs, files). The middleware layer handles data orchestration, ensuring consistent workflows and data transformation between systems.
PLM sends data such as BOMs, item definitions, and engineering changes to the middleware integration platform via API, file drop, or message queue. The middleware transforms and validates the data and routes it to the appropriate module in Dynamics 365 F&SCM using native connectors or exposed APIs.
Middleware can also manage bi-directional communication, receiving inventory or cost data from D365 and transferring it into PLM.
Middleware PLM integration is typically event-driven or scheduled (batch mode).
Built-in monitoring dashboards provide transparency across the integration landscape, with audit trails and failure handling.
Benefits and Challenges
Benefits:
- Scalability: Middleware easily scales up and down per the organization's requirements.
- Security: Middleware has functionalities ranging from encryption and authentication to role-based access to safeguard data.
- Real-time data: Middleware enables real-time data exchange across systems while ensuring consistency.
- Reusability: Logic developed for one integration can often be reused or adapted for others.
Challenges:
- Higher Cost: Middleware platforms may require licensing, infrastructure, and dedicated resources for setup and maintenance.
- High Maintenance: Middleware integration requires continuous maintenance for updates, fixes, and patches.
- Operational Overhead: Aligning goals, roles, and responsibilities for strong governance and centralized management is a complex organizational challenge.
- Data Sprawl: Data is stored on the middleware along with PLM and ERP adding complexity to data management, and risk of inconsistencies and security.
Implementation Considerations of Middleware PLM Integration:
- Platform Selection: Based on enterprise size, IT capabilities, and integration volume, choose between Enterprise Service Bus (ESB) and Integration Platform as a Service (iPaaS).
- Data Governance: Define and manage ownership, validation rules, and synchronization policies across systems.
- Skillset Requirements: Middleware platforms may demand specialized integration, management, and governance skills.
- Security & Compliance: Ensure secure communication channels (e.g., encrypted APIs) and audit logging for compliance and traceability.
Embedded Integration for PLM-Dynamics 365 F&SCM
Embedded integration refers to a tight coupling between PLM functionalities and D365 F&SCM, where the integration logic and user experience are built directly into the Dynamics 365 environment. This approach often involves leveraging native integration capabilities or installing certified ISV solutions like STAEDEAN’s PLM-ERP integration within Dynamics 365.
Embedded integration delivers a seamless user experience, a unified data model, and consistent business logic without needing external platforms or custom middleware.

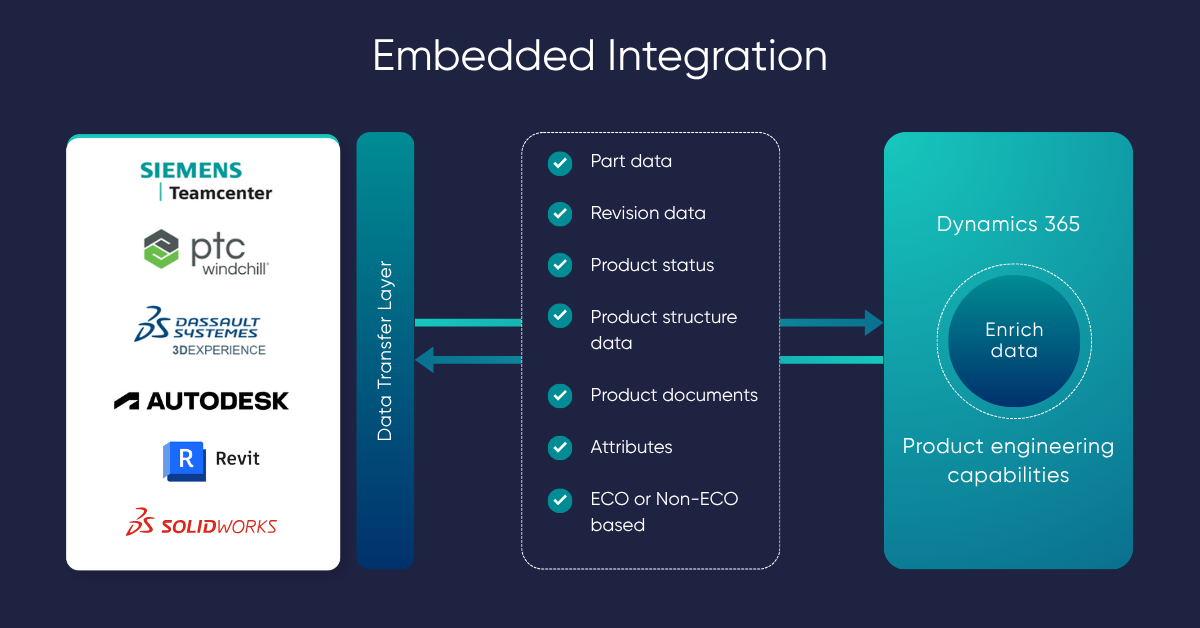

Architecture:
In embedded integration scenarios, PLM data and workflows are native to D365, typically through Microsoft’s extensibility framework..
It has built-in PLM capabilities, such as item creation, engineering change management, and BOM control. Data is stored within D365’s native tables, ensuring complete visibility to related modules like procurement, inventory, and production.
Benefits and Challenges of Embedded Integration PLM Dynamics 365:
Benefits:
- Unified Platform: Eliminates system silos by embedding PLM data and logic into the ERP system.
- Low Overhead: No need to manage, middleware, or separate databases.
- Real-Time Data Availability: All stakeholders access the same live data within the D365 platform.
- Security: Leverage robust security features in line with Microsoft.
Challenges:
- Limited Flexibility: Customizing embedded solutions can be more difficult, particularly when using third-party ISVs.
- Vendor Lock-In: Often relies on specific ISV solutions, which may limit control and future adaptability.
Implementation Considerations of Embedded Integration
- Strategy: Define project specifications and goals.
- Ensure Data Quality: Clean, sort, and convert data to avoid inconsistencies.
- ISV Evaluation: Choose certified ISVs with proven integration, upgrade support, and long-term roadmap alignment with Microsoft.
- Data Governance: Establish clear data ownership and change control protocols.
To know how to prepare your business for an embedded integration, read this blog. |

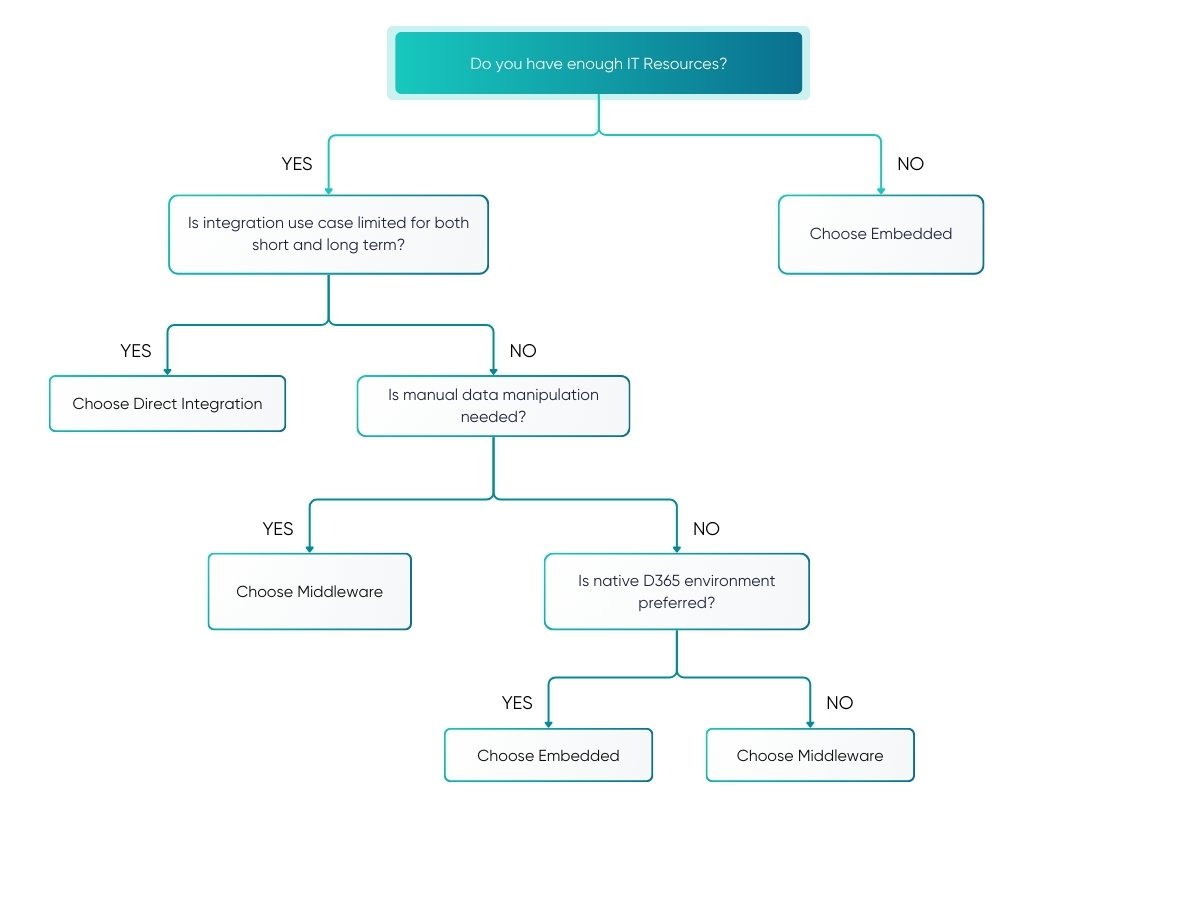

Decision Framework and When to Choose Each Approach
PLM Dynamics 365 architecture planning impacts process efficiency, scalability, and data consistency. This section details the integration decision framework for selecting a suitable integration approach.

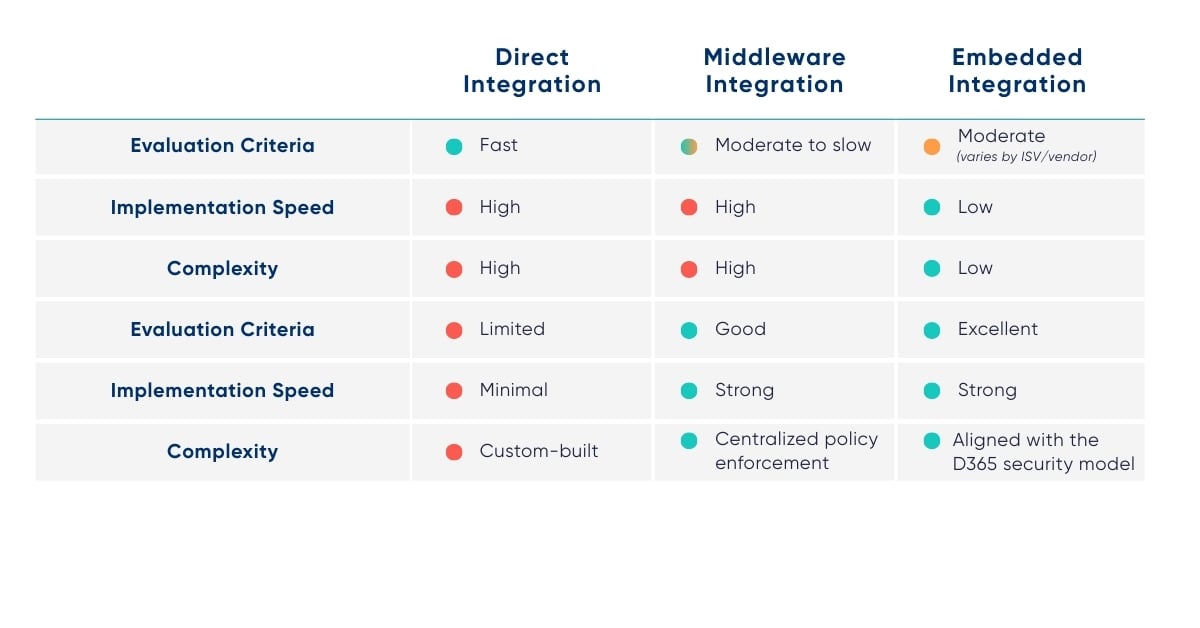

Business and Technical Evaluation Criteria
While deciding on the integration architecture for PLM and Dynamics 365, it is important to consider not only implementation strategy, but also the maintenance and capabilities.
Takeaway: Embedded integration is easy to implement and facilitates real-time data exchange with robust security.
System Landscape and Scalability Requirements
Direct integration works well for small-scale organizations, but complexity grows with scale.
Middleware integration supports scalability in multi-system environments but adds organizational overhead.
Embedded integration offers the best scalability in standardized Dynamics 365 environments, seamlessly aligning engineering and manufacturing operations within a unified platform.
Takeaway: Middleware and embedded integration provide the most scalable architecture.
Budget and Timeline Considerations
Direct integration has moderate deployment costs but high maintenance costs requiring heavy budget in the long run. It can be implemented quickly if the integration is simple, but complex integration delay the timelines.
Middleware integration requires a larger upfront investment in platform licensing, configuration, and resource onboarding, but yields long-term cost savings through reusability and centralized governance. It is the slowest to implement because of an additional layer of software, data mapping, and testing.
Embedded integration often involves mid-range costs, especially when leveraging third-party ISVs with licensing fees, and lower operational costs due to its close alignment with the Dynamics platform. Depending on the ISV readiness, the implementation timeline is moderate.
Takeaway: Embedded integration aligns better with short- and long-term digital strategy and total ownership cost.
Organizational Capabilities and Expertise
Direct integration requires skilled developers with deep system knowledge, making it suitable for organizations with strong tech teams.
Middleware integration demands integration architects, middleware administrators, and process modelers.
Embedded integration leverages D365 experts proficient in platform extensions and Power Platform tools to drive scalable and maintainable integrations.
Takeaway: Embedded integration by ISVs can be implemented and maintained with minimal in-house tech support.
Scenarios for Direct Integration:
Company Overview:
Acme Precision Components is a small manufacturer that designs and produces custom mechanical parts for the automotive sector.
Tech Stack:
- PLM System: Siemens Teamcenter (used for managing CAD data, BOMs, and ECOs)
- ERP System: Microsoft Dynamics 365 F&SCM
- IT Team: Small internal team of developers
Integration Need:
Acme wants to automate the flow of released product data (items and BOMs) from Teamcenter into Dynamics 365 to eliminate manual entry, reduce errors, and speed up time-to-production.
Direct Integration:
Acme implemented point-to-point integration where Teamcenter triggers API calls to D365 each time a product is released. It enabled Acme to automate data transfer quickly. They eliminated manual entry and improved operational efficiency for releasing items and BOMs. This approach was ideal for their focused, initial use case.
Takeaway: When the company has a narrow and well-defined integration use case, with limited IT resources, and long-term integration complexity is simple, they should choose direct integration.
Scenarios for Middleware Integration:
Company Overview:
PrecisionAxle is a growing manufacturer that designs and produces custom mechanical parts for the aerospace sector. It is now expanding into global markets.
Tech Stack:
- PLM System: Siemens Teamcenter (manages CAD data, multi-level BOMs)
- ERP System: Microsoft Dynamics 365 F&SCM
- Additional Systems: Quality Management System (QMS)
- IT Team: Cross-functional team with integration architects and external support
Integration Need:
PrecisionAxle needs to automate and direct data flows across multiple systems: PLM, D365, and QMS, to ensure consistent product data and maintain quality traceability throughout the product lifecycle.
Middleware Integration:
PrecisionAxle adopted a middleware platform (e.g., Azure Logic Apps) to manage growing complexity as a central hub for system communication. Middleware pulls released product data from Teamcenter, transforms it as needed, and routes it to D365 and QMS. This modular architecture allows PrecisionAxle to monitor, log, and retry failed transactions while minimizing impact on source and target systems.
Takeaway: When the company needs to integrate multiple systems and require data modification before sharing it with the target system should choose middleware integration.
Scenarios for Embedded Integration:
Company Overview:
Inoventra is a mid-sized manufacturer specializing in high-mix, custom mechanical parts for automotive and industrial equipment. The company is consolidating its operations under Microsoft’s cloud ecosystem to improve agility and collaboration.
Tech Stack:
- PLM System: Siemens Teamcenter (manages CAD models, product structures, and engineering change data)
- ERP System: Microsoft Dynamics 365 F&SCM
- Microsoft Stack: Power Platform, Dataverse, Active Directory
- IT Team: Microsoft-certified team with Dynamics 365 and Power Platform expertise
Integration Need:
Inoventra aims to integrate engineering and supply chain functions by synchronizing released product data (items, item versions, BOMs, latest drawings, routings, ECOs) from PLM to Dynamics 365 near real time and store the same on only D365 platform. This ensures smooth production planning, rapid change implementation, and complete data traceability.
Embedded Integration:
Inoventra adopted an embedded integration approach in partnership with a certified ISV. The solution enables engineering changes to trigger automatic updates to production BOMs, ensuring alignment between design and operations. This approach allows real-time visibility, simplifies ongoing maintenance, and provides seamless compatibility with Dynamics 365 updates, positioning Inoventra for long-term scalability and reduced IT overhead.
Takeaway: Companies that require native D365 environment, strong security, minimum maintenance overhead, and scalability should choose embedded integration.
Migration Strategies Between Approaches
As organizations mature or undergo digital transformation, shifting from one integration model to another is common. Here are some strategic reasons that require the businesses to migrate:
- Direct to Middleware/Embedded: Direct integration often requires custom coding by developers, which creates reliance on them and can be costly to maintain. To reduce this dependency and lower maintenance costs, companies may switch to a middleware or embedded approach.
- Middleware to Embedded: Companies may move from middleware to embedded integration when they want a native D365 experience, simpler maintenance, and better security.
- Embedded to Middleware: Although less common, some companies move from embedded to middleware when they need to modify data before sending it to the target system.
Manufacturing-Specific Integration Considerations
Manufacturing PLM integration must meet unique criteria, such as tracking real-time production updates, managing product revisions, and quality controls.
This section explores how different integration models handle key manufacturing PLM integration requirements, emphasizing production data synchronization, engineering workflows, and quality management.
Real-Time Production Data and BOM Synchronization
Accurate and timely Bill of Materials (BOM) synchronization is essential in manufacturing, especially in make-to-order or engineer-to-order environments. A lag or error can result in production delays, inventory mismatches, or regulatory violations.
- Direct Integration: Point-to-point integration does not synchronize in real time, causing version control issues, and API-based direct integrations offer better control but may still lack advanced error handling.
- Middleware Integration: It offers robust production data synchronization across systems using queuing, retries, and audit trails. It is ideal for syncing multi-level BOMs, routings, and production versions.
- Embedded Integration: It allows native creation and versioning of BOMs within Dynamics 365 using built-in PLM capabilities. It also ensures real-time updates as new engineering changes are introduced.
Takeaway: Due to their real-time data exchange, middleware or embedded approaches are preferred for high-mix or highly regulated industries.
Engineering Change Management Workflows
Managing engineering changes effectively is critical in modern manufacturing. Integration must ensure that changes to parts, assemblies, or processes are communicated clearly across engineering, procurement, and manufacturing teams.
- Direct Integration: Engineering Change Requests (ECRs)and Engineering Change Orders (ECOs) must be aligned through separate connectors which are complicated and costly to develop and maintain.
- Middleware Integration: ECRs can be updated either directly within ERP or through the middleware solution. Similarly, ECOs can be managed in the middleware, which then handles the processing and passes the updates to the PLM system for synchronization.
- Embedded Integration: Leverages Engineering Change Management (ECM) within D365 to route ECOs and update BOMs. Changes are tracked in real time and reflected directly in ERP.
Takeaway: If your manufacturing operations rely heavily on regulated engineering change processes, embedded integration provides the necessary control and compliance tracking.
Quality Management and Compliance Requirements
Compliance with industry standards, such as ISO or FDA, requires full traceability from product design to production and delivery. Integration must ensure consistent data flow for inspections, certifications, and quality records.
- Direct Integration: It isn't easy to audit or trace data between the two systems.
- Middleware Integration: It can connect PLM and ERP with Quality Management Systems (QMS) to support quality processes.
- Embedded Integration: Integrates quality checkpoints and inspection criteria using built-in workflows or ISV solutions.
Takeaway: For regulated manufacturers, embedded integration ensures end-to-end traceability and data consistency.

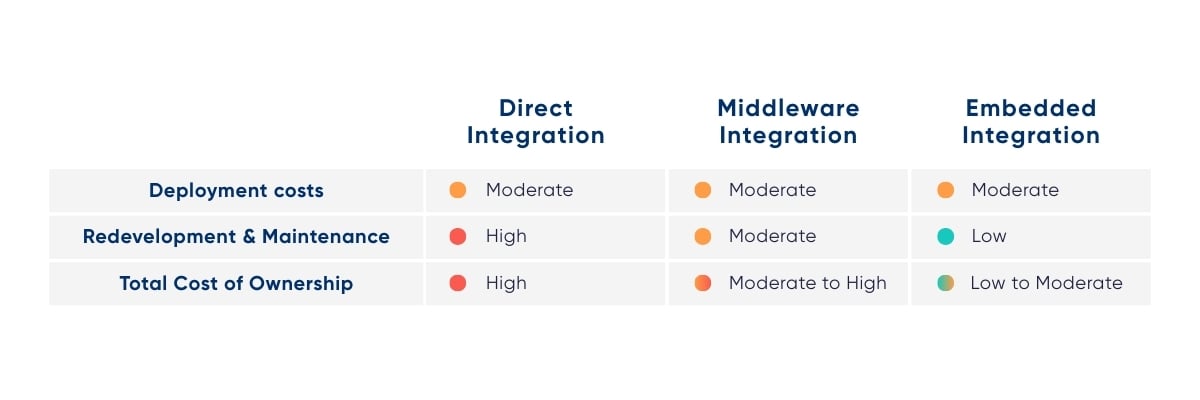

Implementation and Cost Analysis
One of the most critical aspects when evaluating PLM Dynamics 365 integration implementation is cost. This includes the upfront expenses of development and deployment, as well as long-term maintenance and upgrades. Let’s look at the integration implementation and cost analysis of each approach.
Point-to-point integration relies on custom-built connections between PLM and Dynamics 365. While development can be quick for simple environments, each additional integration increases complexity and incurs linear or exponential cost growth. System changes or upgrades require complete redevelopment, leading to higher lifecycle costs.
Middleware integration supports modular, reusable connections across systems but requires a specialized implementation skillset. This translates into high upfront and operational costs, including platform licenses, integration consultants, and testing. The deployment process is slower and requires coordination across systems, increasing project costs and lead times.
Embedded integration from ISVs benefits from a low-code approach, resulting in faster deployment and reduced development costs. Licensing is bundled within Dynamics 365 plans, making it a cost-efficient model for businesses within the Microsoft ecosystem.
Takeaway: Embedded integration delivers the best value and long-term cost savings, making it the most cost-effective for organizations invested in Dynamics 365.
Conclusion:
Integrating PLM with Microsoft Dynamics 365 F&SCM is a critical decision that boosts your organization’s efficiency, data reliability, and growth. Each integration model offers distinct advantages depending on the complexity of your system landscape, available resources, and business maturity.
Direct integration best suits small organizations with limited data flow and strong in-house development capabilities. It offers speed but incurs high maintenance and redevelopment expenses as systems evolve.
Middleware integration is powerful and flexible, ideal for enterprises with a diverse IT ecosystem and a dedicated integration team. While it delivers robust synchronization and scalability, it demands significant upfront investment and long-term management.
Embedded integration is the most strategic and cost-effective option for organizations using Dynamics 365. It offers low-code, seamless real-time synchronization, and streamlined maintenance, delivering long-term value with lower total cost of ownership and faster time-to-deploy.
